- Code:
24221
Container for buffers for Minigraf, magnetized
- Net weight: grams 135 - Gross weight: grams 155
Container for buffers for Minigraf, magnetized
In the Minigraf underpinners series "U", a new frame locking system has benn introduced. The system consists of 3 different types of clamping L-pads (see their technical datasheets) that should be inserted into the cavity of the pad holder.
There are 3 different types of pad holders available.
This is the magnetized pad holder (code 24221). It must be fixed to the vertical bar with two bolts supplied.

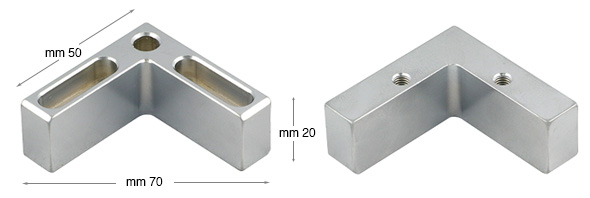

You see two photos of the pad holder:
1) In its natural position (ie as it is set during the assembling)
2) In reverse position to highlight the cavities in which the clamping L-pad must be inserted.
